Digital tire Pressure Gauge HPM5 | Prisma Electronics
Manomètre numérique de Pression des Pneus HiPreMa5
ABS case for Tire Pressure gauge HPM5
Prisma Electronics and Birel Art in the WSK Championship.

Manomètre numérique de haute précision pour la pression des pneus en sport automobile.

  • Résolution de la pression : 0,001 BAR / 0.01 PSI
  • Plage de pression : 0 - 7 BAR (100 PSI)
  • Embout de pneu en aluminium conçu par Prisma Electronics pour mesurer sans perte d'air depuis la valve de la roue.
  • Connexion sans fil des instruments via l'application Prisma Electronics pour visualiser et exporter toutes les sessions enregistrées.
  • TOUCHE DE FONCTIONS RAPIDES

Connexion sans fil des instruments via l'application Prisma Electronics pour afficher et exporter toutes les sessions enregistrées.

Expédié sous 24/48 heures
Boîtier ABS inclus.

Prix régulier €299,00
Prix de vente €299,00 Prix régulier
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.

FIRST OF ALL : ACCURACY

HPM5 : A NEW STANDARD OF ACCURACY FOR THE MOTORSPORT IN THE PRESSURE GAUGES

With the digital tire pressure gauge HPM5, pressure resolution is 0.001 BAR / 0.01 PSI, ensuring precision and reliability, which are essential in many Motorsport categories like MotoGP, Superbike, GT Endurance, and others, where tire manufacturers impose mandatory minimum pressures.

Designed with and for motorsport professionals

PRESSURE RESOLUTION: 0.001 BAR / 0.01 PSI

ATTENTION TO DETAILS

ALUMINUM TIRE CHUCK ENGINEERED BY PRISMA ELECTRONICS TO ENSURE MEASUREMENT WITHOUT AIR LOSS FROM THE WHEEL VALVE.
PSI in High pressure resolution for the tire gauge HPM5

CUSTOMIZABLE

Thanks to quick-function buttons, HPM5 instruments allow fast configuration of key features — developed based on real feedback from top racing teams — to adapt instantly to any track scenario.

QUICK-FUNCTIONS BUTTONS

You can change the operating mode of your instrument on the fly by simply pressing a button.

This feature allows you to set an offset value for the pressure, hiding the actual set value. This is useful, for example, in the pit lane or on the starting grid, when you want to hide the exact pressure value for strategic reasons. When the offset is active, the display shows the modified value, but you can always adjust the pressures accordingly. This function can be quickly activated or deactivated at any time using the quick-function buttons.

Connect your Instrument with the App

With the new APP for the HPM5 tire gauges you can connect your instrument to the app for

ANALYZE - DOWNLOAD - SHARE - EXPORT

data of each session

EXPORT DATA FROM APP

You can export EXCEL or PDF file for each session - for each Track - for all Tracks.

YOU CAN SHARE ON THE CLOUD ALL THE DATA OF THE SESSIONS WITH OTHER TEAM MEMBERS.

With the data exported to the spreadsheet, you can perform all measurement evaluations.

SHARE THE PDF OF THE SESSION

YOU CAN SEND THE PDF FILE WITH THE DATA OF THE CURRENT SESSION DIRECTLY VIA WHATSAPP - EMAIL - CLOUD

INSTRUMENT CONFIGURATION

CONFIGURE AND UPDATE YOUR INSTRUMENT VIA THE APP OR BY THE INSTRUMENT'S MENU

Technical Features
DATA SAVED FOR EACH SESSION
  • 50 complete sessions saved in the internal memory of the instrument
  • Date and Time of each session
  • Air ambient temperature
  • Cold and Hot pressure and relative difference
  • Vehicle number
PRESSURE SHOT® FUNCTION

A very easy of use way of quickly just checking the hot tyre pressure. By activating this function the pressure gauge save automatically the HOT tire pressures without pressing any buttons.
PRESSURE RESOLUTION

0.001 BAR - 0.1 PSI
CALIBRATION

Tire pressure gauge HPM5 does not require calibration. The internal microprocessor automatically performs the procedure in order to reach a reliable measure at 100%.

Technical Support

Here, you will find a series of articles dedicated to updating the firmware of HPM5 instruments, app updates, and links to guides on how to use the Prisma Electronics instruments.

Voir tout

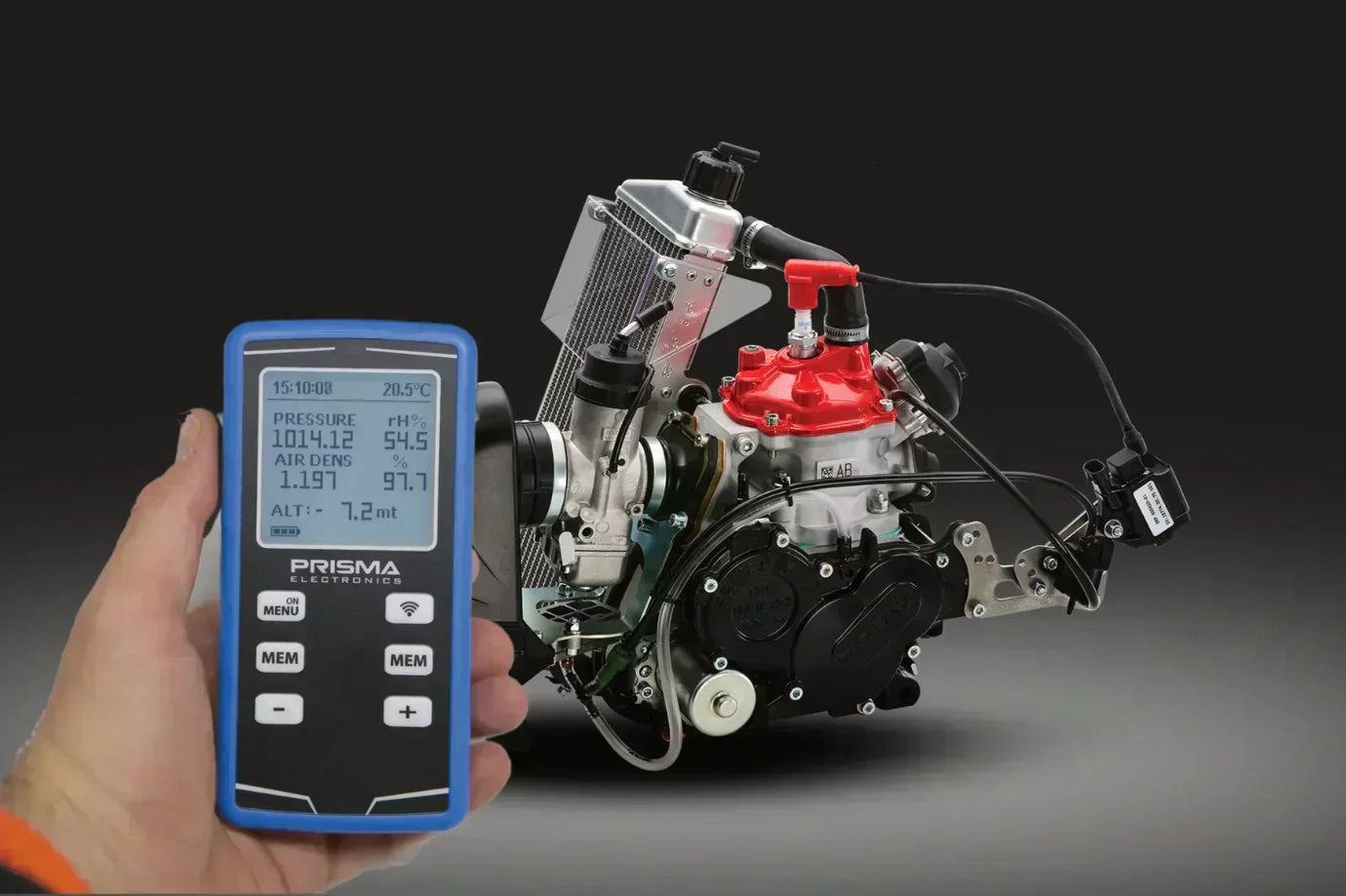

  • AirPro APP Jetting and Prisma Electronics Densimeter

    AirPro Jetting : guide de carburation Rotax basée sur la densité de l’air

    Un guide pratique pour utiliser AirPro Jetting, l’application Prisma Electronics conçue pour accompagner la carburation des moteurs Rotax à partir des données de densité de l’air mesurées par le Densimètre AirPro. Découvrez comment télécharger les sessions, interpréter les conditions atmosphériques, ajuster la référence de carburation et construire une méthode plus constante entre deux sessions en piste.

  • How to Use HPM5 Tire Gauges

    Page de support pour Prisma Electronics HPM5

    Ici, vous trouverez une série d'articles consacrés à la mise à jour du firmware des instruments HPM5, des mises à jour d'applications, et des liens vers des guides sur comment utiliser les instruments Prisma Electronics.

  • Tire gauges HPM5 – Designed for and with Motorsport Professionals

    Manomètres et Pyromètres pour pneus HPM5 – Conçues pour et avec les professionnels du Motorsport



    Prisma Electronics présente la nouvelle HiPreMa 5 ligne d'instruments. Cette cinquième génération d'instruments de précision se distingue surtout par son intégration avec une application dédiée, permettant la connexion à tous les modèles de la nouvelle ligne.

Voir tout

ABS case included

COUVERTURE en silicone pour HPM4 - HPM5
COUVERTURE en silicone pour HPM4 - HPM5
COUVERTURE en silicone pour HPM4 - HPM5
PROTECT YOUR INSTRUMENT WITH ACCESSORIES
Prix régulier €24,00
Prix de vente €24,00 Prix régulier
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.

Frequently Asked Questions

Read all FAQs

How do you calibrate the HPM5 digital tire gauge?

The digital tire pressure gauge HPM5 does not require calibration. Upon each power-up, the internal microcontroller verifies the sensor's calibration. If the parameters are not correct, the message OFFSET ERROR will appear on the display.
Can I measure the pressure in BAR and PSI?

Yes, you can measure pressure in both BAR and PSI. Here are some key specifications:

  • Pressure Resolution: 0.001BAR / 0.01 PSI
  • Pressure Range: from 0 to 7 BAR (up t 100 PSI)
Can HPM5 instruments be configured for both two- and four-wheeled vehicles?

Yes, HPM5 instruments are configurable for both two- and four-wheeled vehicles. You can use the app to change the configuration or through the instrument's menu.
