Manomètre Numérique de Pression de Pneu avec Pyromètre à Double Technologie
Manomètre Numérique de Pression de Pneu avec Pyromètre à Double Technologie

Manomètre Numérique de Pression de Pneu avec Pyromètre à Double Technologie

Manomètre de pression de pneu numérique HPM5 avec pyromètre à double technologie, Capteur infrarouge + Sonde à aiguille.

Vous pouvez mesurer et sauvegarder :

  • Les pressions des pneus
  • 12 points de températures des pneus
  • Température de l'air
  • Température de la piste

Caractéristiques :

  • Résolution de la pression : 0,001 BAR / 0.01 PSI
  • Plage de pression : 0 - 7 BAR (100 PSI)
  • Embout de pneu en aluminium conçu par Prisma Electronics pour la mesure sans perte d'air à partir de la valve de la roue.
  • TOUCHE DE FONCTIONS RAPIDES

Connexion sans fil des instruments via l'application Prisma Electronics pour visualiser et exporter toutes les sessions enregistrées.

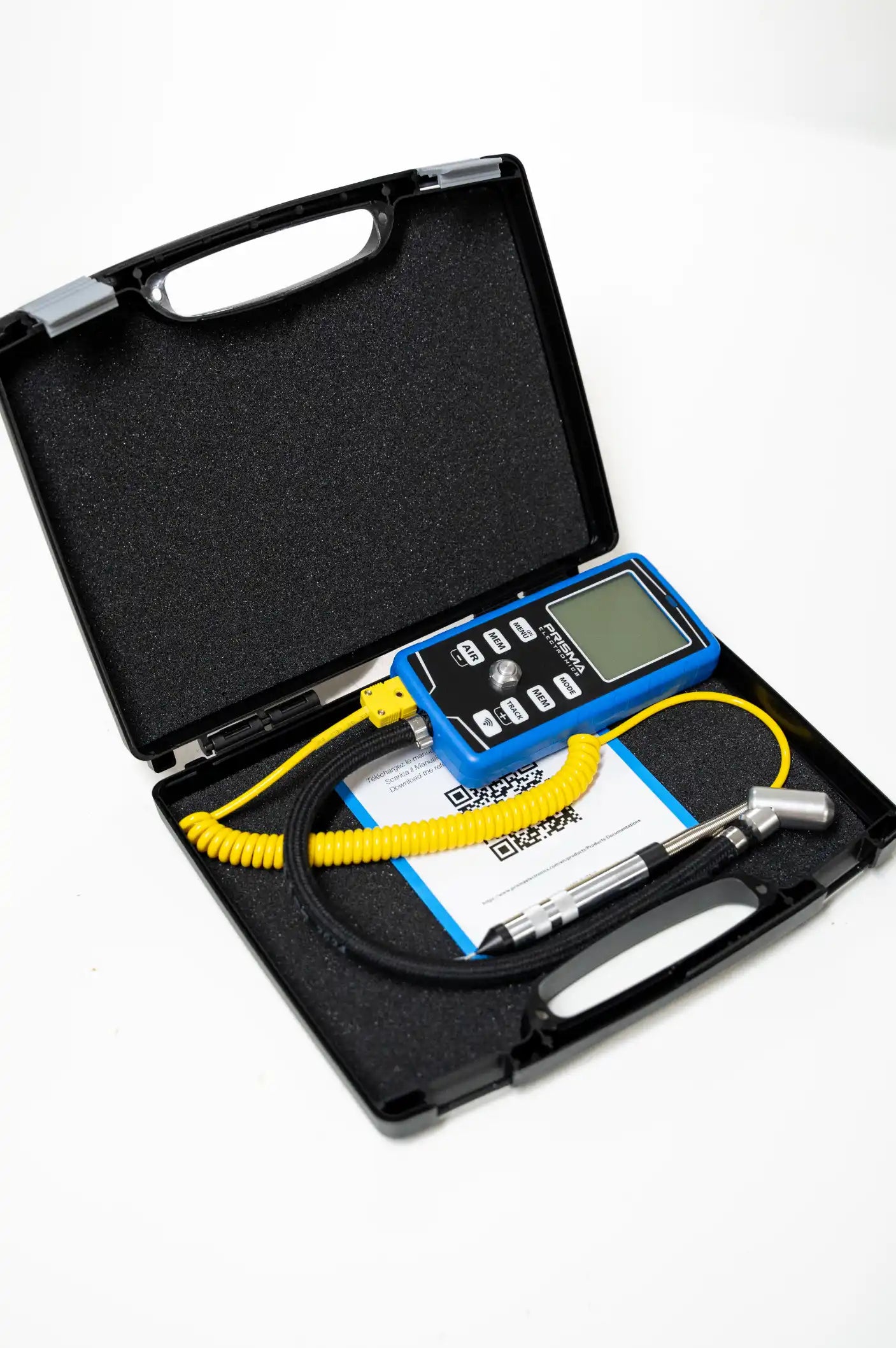

ABS et COUVERCLE inclus.

Expédition : 24/48 Heures
Code produit : HPM5+DUAL-PYR

En stock
Prix régulier €384,43
Prix de vente €384,43 Prix régulier
VAT NOT INCLUDED
Frais d'expédition calculés à l'étape de paiement.

HPM5 with Dual Technology tire pyrometer: Designed for tire specialists

FIRST OF ALL : ACCURACY

PRESSURE RESOLUTION: 0.001 BAR / 0.01 PSI

Digital tire pressure gauge with dual pyrometer designed for tire specialists, what are the benefits?

It is essential to have an instrument capable of measuring tire pressure and temperature without technological limitations. Both Type K thermocouple probes and INfrared Sensors can face limitations in certain circumstances. That’s why we have developed a dual-technology instrument specifically for racing tire specialists.

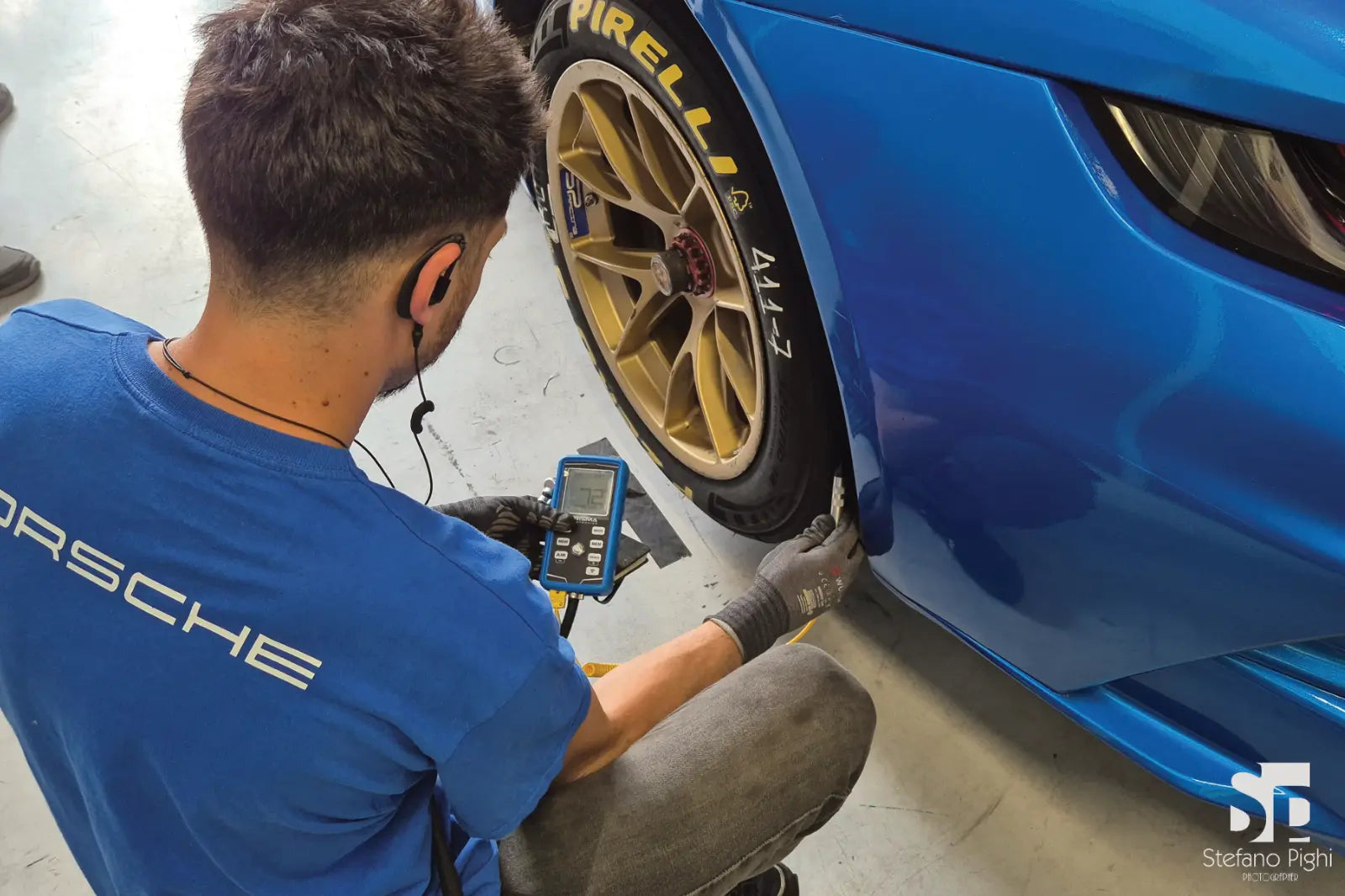

The Infrared Sensor measures tread temperature quickly, in less than 0.5 seconds. Additionally, with its 35° field of view (FOV), it provides an average tread temperature reading.

The Needle probe, on the other hand, is ideal for measuring the tire compound temperature at specific points, such as areas affected by blistering or graining.

CUSTOMIZABLE

The instruments’ operating modes can be easily configured with quick-function buttons, allowing you to activate or deactivate features in seconds. These features were developed based on feedback from top teams competing in leading two-wheel and four-wheel motorsport championships.

QUICK-FUNCTIONS BUTTONS

You can effortlessly switch the operating mode of your instrument on the fly with a single button press.

This feature allows you to set an offset value for the pressure, hiding the actual set value. This is useful, for example, in the pit lane or on the starting grid, when you want to hide the exact pressure value for strategic reasons. When the offset is active, the display shows the modified value, but you can always adjust the pressures accordingly. This function can be quickly activated or deactivated at any time using the quick-function buttons.

You can choose to store 8 pressure values (Cold and Hot) or just 4 pressure values. This is useful if you only want to measure Pit-Out or Pit-In pressures. Similarly, in Moto configuration, there will be only 4 or 2 pressure values.

Connect your Instrument with the App

With the new APP for the Hiprema5 gauges you can connect your instrument to the app for

ANALYZE - DOWNLOAD - SHARE - EXPORT

data of each session

EXPORT DATA FROM APP

You can export EXCEL or PDF file for each session - for each Track - for all Tracks.

YOU CAN SHARE ON THE CLOUD ALL THE DATA OF THE SESSIONS WITH OTHER TEAM MEMBERS.

With the data exported to the spreadsheet, you can perform all measurement evaluations.

SHARE THE PDF OF THE SESSION

YOU CAN SEND THE PDF FILE WITH THE DATA OF THE CURRENT SESSION DIRECTLY VIA WHATSAPP - EMAIL - CLOUD

INSTRUMENT CONFIGURATION

CONFIGURE AND UPDATE YOUR INSTRUMENT VIA THE APP OR BY THE INSTRUMENT'S MENU

Technical Features
DATA SAVED FOR EACH SESSION
  • 50 complete sessions saved in the internal memory of the instrument
  • Date and Time of each session
  • 12 Points of Tire Temperature
  • Track Temperature
  • Air Temperature
  • Cold and Hot pressure and relative difference
  • Vehicle number
PRESSURE SHOT® FUNCTION

A very easy of use way of quickly just checking the hot tyre pressure. By activating this function the pressure gauge save automatically the HOT tire pressures without pressing any buttons.
PRESSURE RESOLUTION

0.001 BAR - 0.1 PSI
CALIBRATION

Tire pressure gauge HPM5 does not require calibration. The internal microprocessor automatically performs the procedure in order to reach a reliable measure at 100%.
NEEDLE PROBE SPECS
  • Temperature Accuracy +/- 2°C
  • Temperature resolution 0.1°C
  • Temperature range 0 - 200°C
  • Response time +/- 3 sec
INFRARED SPECS
  • Temperature accuracy +/- 1°C
  • Temperature resolution 0.1°C
  • Response Time 0.5 sec
  • FOV 35°
