Digital Tire Pressure Gauge with Dual Technology Pyrometer HPM5

€384,43

TAX NOT INCLUDED. Shipping calculated at checkout.

Read the reviews Trusted by over 2,000 motorsport professionals worldwide

Digital Tire Pressure gauge HPM5 with Dual-Technology Pyrometer, Infrared Sensor + needle probe, useful when you want to understand the tire footprint in order to optimize CAMBER and CASTER on car vehicles and the temperatures at different lean angles in the Motorcycle categories. You can measure and save:

Pressure range: 0 - 7 BAR (100 PSI)

Pressure resolution: 0,001 BAR / 0,01 PSI

HOT and COLD tire Pressure analisys

12 Points of Tire Temperatures

Air temperature

Track temperature

Wireless connectivity: Download and Analyze your sessions with the Prisma Electronics App

Aluminum Tire chuck designed by Prisma Electronics for measurement without air loss from the wheel valve.

Factory-calibrated accuracy guaranteed over time

ABS case and protective cover included for a professional-grade instrument.

Product Code: HPM5+DUAL-PYR

Shipping within 24/48 hours

BEST SELLER

Digital Tire Pressure Gauge with Dual Technology Pyrometer

Tire pressure gauges Prisma Electronics used in Moto 2 World Championship by Fantic Moto Racing Team.

Designed WITH and FOR motorsport professionals.

Moto2, GT Endurance, Lamborghini Hypercar, World Superbike Championship. The instrument is designed based on the real needs of motorsport professionals in various racing conditions and scenarios. Every function is designed on track.

50+

Official Teams

2.000+

Trusted by over 2,000 motorsport professionals worldwide

"DESIGNED ON TRACK"

FIRST OF ALL: THE ACCURACY

With the HPM5 line of instruments, precision has reached a new standard in motorsport. Pressure resolution is 0.001 BAR / 0.01 PSI, ensuring absolute precision. Temperature has a resolution of 0.1°C to precisely measure your vehicle's tire footprint.

UNIQUENESS

Pressure resolution 0,001 bar

100x Higher resolution than standard gauges. Set precise and repeatable pressures, session after session.

1.590 BAR is different from 1.598 BAR.

UNIQUENESS

Dual technology Pyrometer

Infrared sensor to measure temperature quickly (0.5 s) + Needle probe to measure temperature at specific points, for example at blistering or graining.

UNIQUENESS

Guaranteed calibration

No calibration required. Each time the instrument is turned on, it calibrates the pressure sensor to obtain measurements accurate to the nearest thousandth of a bar.

Each category, each team, has its own work process on the track during race weekends.

QUICK-FUNCTIONS BUTTONS

Pressure Offset

This feature allows you to set an offset value for the tire pressure, hiding the actual tire pressure. This is useful, for example, in the pit lane or on the starting grid, when you want to hide the exact pressure value for strategic reasons.

Pit-Stop mode

UNIQUENESS

Pitstop mode allows you to quickly measure and adjust tire pressure during a pit stop without pressing any buttons. Insert the gauge, adjust the pressure if necessary, remove it, and the initial pressure and adjusted pressure are saved.

Pressure Shot®

UNIQUENESS

Automatically saves hot tire pressure without pressing a button. Simply attach the gauge to the valve and the data is saved. Zero stress in the pit lane.

Pressure - Temperature sequence

UNIQUENESS

The P/T mode, if activated, allows the instrument to automatically switch from the Pressure measurement function to the Pyrometer function for measuring the Temperature at the tread points following a predefined sequence that you have set.

Adapt the instrument to your workflow on track.

CUSTOMIZABLE

You can quickly adapt the functionality of your instrument based on the scenario you have on the track at that moment.

QUICK FUNCTIONS

Pressure Offset

This function allows you to set an OFFSET value for the pressure, hiding the actual value. This is useful, for example, in pit lane or on the starting grid when you want to hide your actual pressure. When the OFFSET is active, the display shows the modified value along with the OFFSET indication, informing you that the displayed pressure is not the actual one but rather the OFFSET value you previously set has been applied. This function can be quickly activated or deactivated at any time using the quick function buttons.
Discover this function

QUICK FUNCTIONS

Pit-Stop mode

Target Pressure Adjustments Enabling this feature causes the instrument to display the PIT symbol on the screen. During a pit stop, it is essential to measure and record the pressure upon entry to the pits and then adjust it to the target pressure (for example, after a driver change). Insert the instrument, adjust the pressure if necessary, remove it, and the initial pressure and adjusted pressure are stored.
Learn more about this mode

QUICK FUNCTIONS

Cold-Hot Pressure

By default, each session records the cold and hot pressures, along with the difference between them. However, when the HOT function is activated, the session stores only four pressure values (or two for two-wheeled vehicles). When enabled, the HOT symbol appears on the display. For example, if you want to measure only the Pit-in pressures, activating the HOT function will save a session with only the four pressure values recorded.
Read more

Quick functions

Pressure - Temperature Mode

Automatic Pressure and Temperature Measurement mode, when activated, allows the instrument to automatically switch from pressure measurement to pyrometer mode for measuring temperature at tread points, following a predefined sequence you have previously set.
How it works
Once activated, the instrument displays the sequence you have set. For example:
✅ Measures tire pressure
✅ Measures the outside temperature of the tire
✅ Measures the center temperature of the tire
✅ Measures the inside temperature of the tire
Learn more about this mode

Aluminum tire chuck for tire pressure gauge HPM5

Prisma Electronics design

Attention to detail
Aluminum Air chuck

We have verified that air loss during pressure measurement is not caused by the air inside the hose, but by how quickly the wheel valve opens and closes. With this chuck, the valve is opened to a minimum. Air loss is limited to just 0.001 bar per measurement.

Dual Technology Pyrometer

WHAT ARE THE BENEFITS?

It is essential to have an instruments capable of measuring tire pressure and temperature without technological limitations. Both K-Type Thermocouple probes and Infrared sensors can face limitations in certain circumstances.That's why we have developed a Dual-Technology instrument specifically for racing tire specialists.

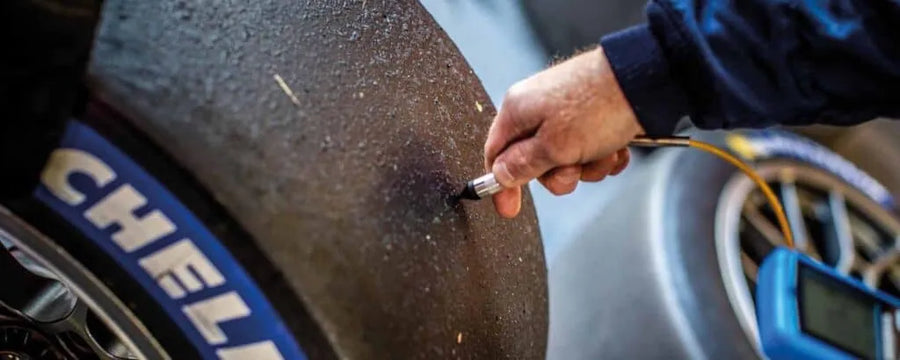

Tire temperature measurement with needle probe.

Needle probe sensor

The needle probe is ideal for measuring tread temperature at specific points, such as areas affected by blistering or graining. Its only disadvantage is that it is not as fast as an infrared sensor.

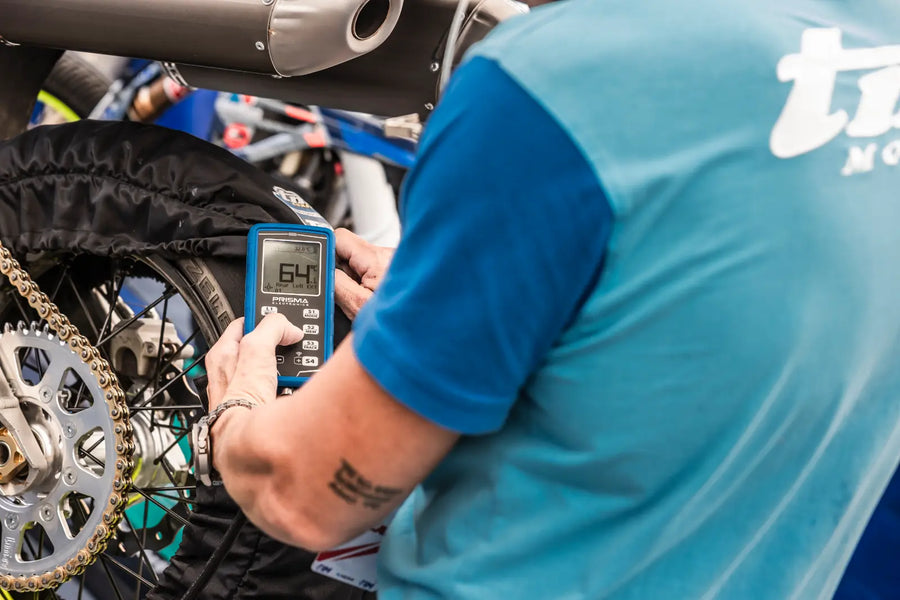

Tire temperature measurement with Prisma Electronics pyrometer during S1GP Supermoto race.

Infrared Sensor

The infrared sensor measures tire tread temperature extremely quickly, in less than 0.5 seconds. Furthermore, thanks to its narrow FOV of 35°, you can use it to measure temperature at specific points or measure the average temperature distribution across the tread.
In this article, we compared the two technologies >

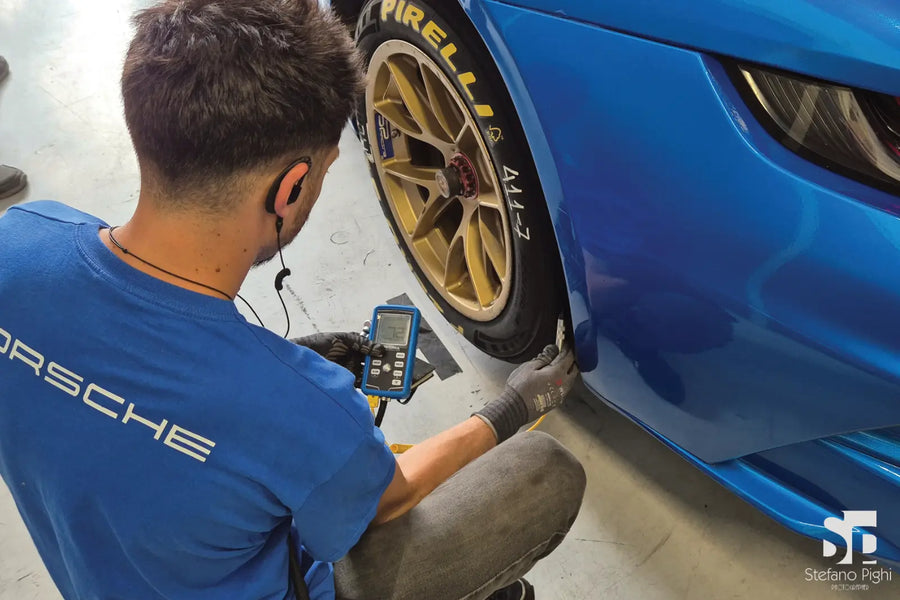

Measuring tire tread surface temperature with the Prisma Electronics HPM5 Dual-Technology Pyrometer to evaluate tire contact patch.

Automatic sensor selection

The instrument automatically sets the temperature sensor. If the needle probe is connected, it takes priority over the infrared sensor. If it is removed, the instrument automatically switches to infrared mode. You can also switch manually by pressing the MODE button.

Infrared Sensor vs Needle Probe

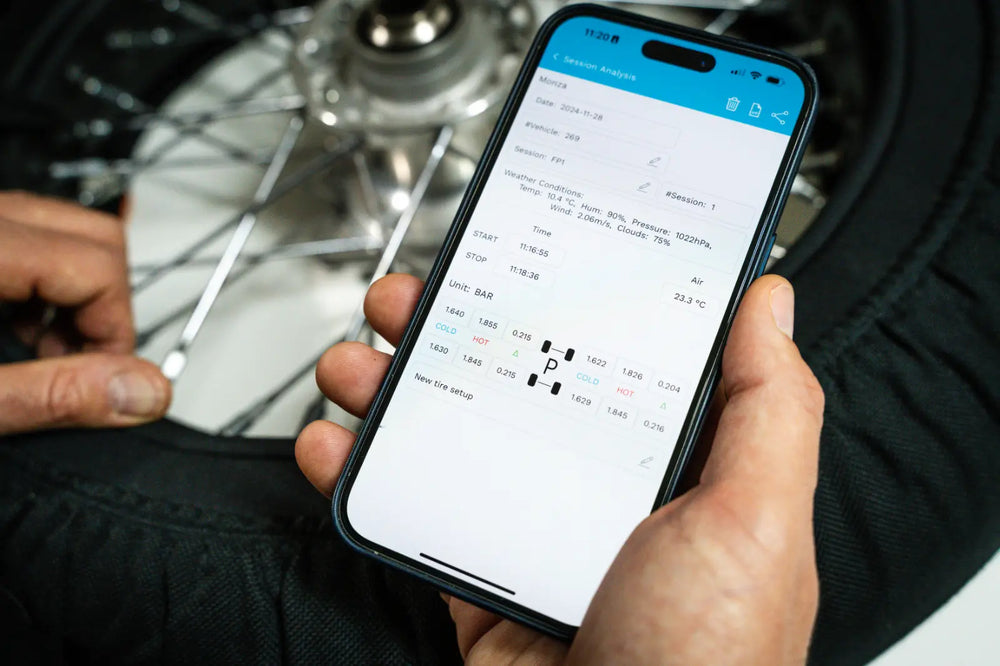

APP Prisma Electronics

Digital ecosystem with the Prisma Electronics APP to save, analyze and share data.

The Prisma Electronics App is an integral part of the innovative HPM5 instrument line. Designed for iOS and Android devices, the app enables seamless wireless connectivity, easy access to all stored sessions, as well as exporting and sharing data with your team.

Discover the Prisma Electronics App >

1. Location on the track

When you arrive at the Track, you can locate yourself with the app, and all the sessions you download will be stored in that Circuit's folder. You'll have all your data history at your fingertips. No more paper sheets; your pressure and temperature data are organized professionally.

2. Analyze Sessions

By downloading your sessions to the app, you have all the data on your devices. You can quickly analyze the session and scroll through the various sessions.

3. Export and share

For precise analysis of session data, you can export everything to PDF and EXCEL. By creating a shared cloud folder, all team members with cloud access can view your files. A professional way to work.

4. Constantly evolving firmware

We continuously update our instruments. Your instrument will always be up to date; it won't become obsolete: it constantly evolves with you.

Export sessions to Excel and PDF formats

EXCEL - PDF

You can export an Excel file with one or all of the sessions stored on the app. Once you have the Excel file, you can apply all the mathematical formulas and generate macros to organize the data. Exporting to PDF makes it easy to share sessions, for example, via WhatsApp.

SET UP YOUR INSTRUMENTt

Configure your instruments using the APP

You can configure and update your instrument very quickly. You can also do this via the instrument menu.

HPM5 Designed on track

TECHNICAL SPECIFICATIONS

MEASURING RANGE | RESOLUTION | CALIBRATION

Pressure

Pressure Range

0 - 7 Bar
0 -100 PSI

Pressure resolution

0,001 Bar
0,01 PSI

Temperature

Infrared sensor:

Measurement range: 0°C - 350°C
Resolution: 0,1°C
Accuracy: +/- 1°C
Response time: 0,5 secondi
FOV 35°

Needle probe:

Measurement range: 0°C - 200°C
Resolution: 0,1°C
Accuracy: +/- 2°C
Response time: +/- 3 secondi

Calibration

The HPM5 tire gauge does not require calibration. The internal microprocessor automatically performs the procedure to ensure a 100% reliable measurement.

Data saved per session

50 complete sessions stored in the instrument’s internal memory
Date and time of each session
Air temperature
Track (asphalt) temperature
12 tire tread temperature points
Cold and hot pressure with relative difference
Vehicle number

Quick functions

Pressure SHOT® function
PIT-STOP mode
Pressure OFFSET
Automatic PRESSURE ↔ TEMPERATURE sequence

Wireless Connection

Connect your instrument to the Prisma Electronics App to download and analyze all your sessions.
