This fifth generation of precision instruments stands out especially for its integration with a dedicated app, allowing WIRELESS connection to all models in the new line. Thanks to the app, you can download and view session data, export it to Excel or PDF, share it on the cloud with team members, and configure the instruments quickly and intuitively.

8 products

What's News

Accuracy

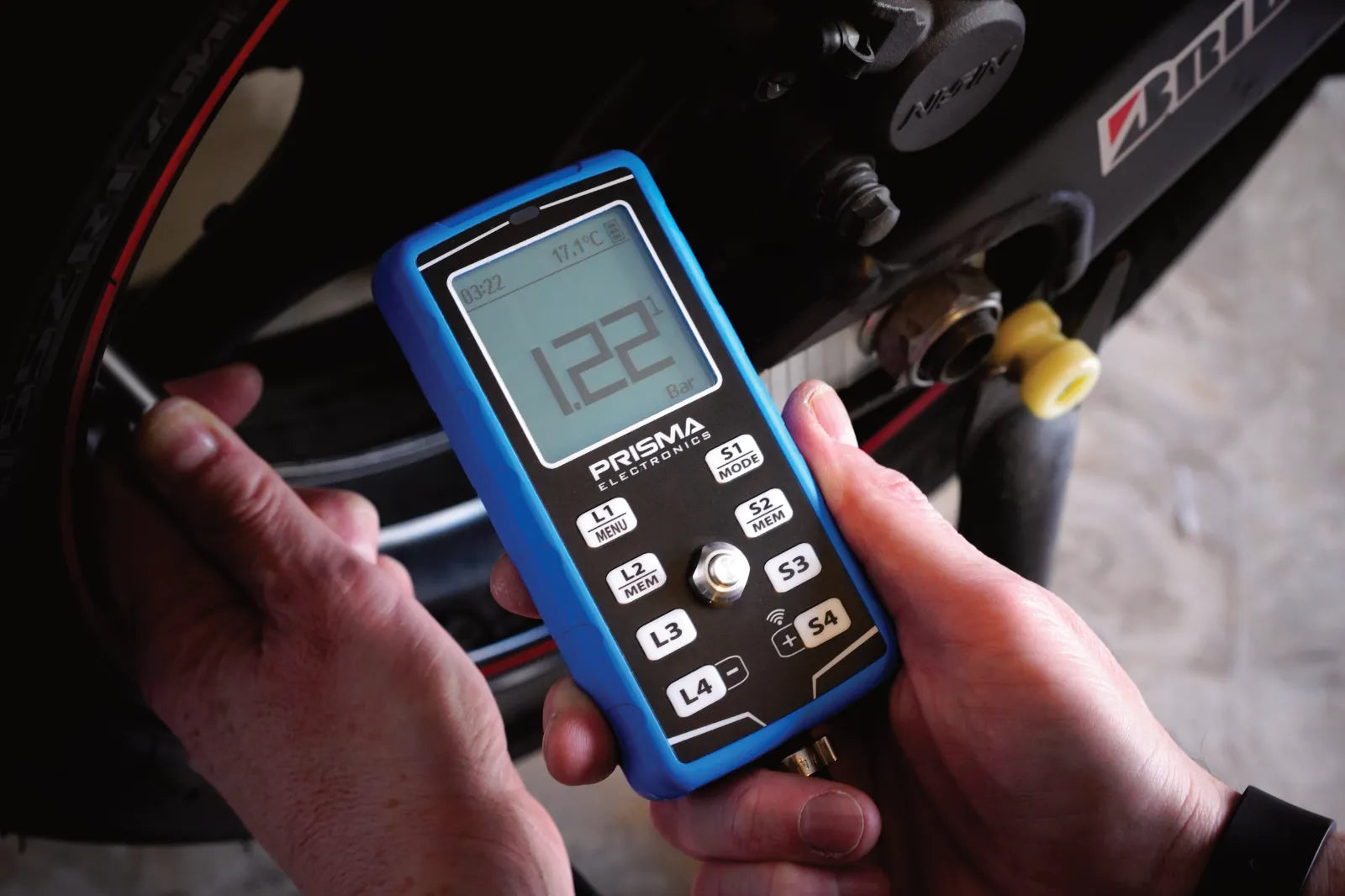

With HPM5, pressure resolution is 0.001 BAR / 0.01 PSI, ensuring precision and reliability, which are essential in many Motorsport categories like MotoGP, Superbike, GT Endurance, and others, where tire manufacturers impose mandatory minimum pressures.

Configurable Operating Modes via Quick-Function Buttons

The operating modes of HPM5 instruments can be easily configured using the quick-function buttons. In just a few moments, you can activate/deactivate various functions developed based on feedback from the teams we work with in major two-wheel and four-wheel championships.

Pressure OFFSET

This feature allows you to set an offset value for the pressure, hiding the actual set value. This is useful, for example, in the pit lane or on the starting grid, when you want to hide the exact pressure value for strategic reasons.

Pit-Stop Function

During a pit stop, it's essential to measure and record the pressure when entering the pit and later adjust it to the target pressure (for example, after a rider change). Simply insert the instrument, adjust the target pressure, and remove the gauge without pressing any buttons.

P/T Function (Pressure/Temperature)

Activating this function automatically switches the instrument from pressure measurement mode to tire temperature measurement mode. The display automatically shows the sequence to follow to measure and store tire pressures and temperatures:

  1. Tire pressure
  2. Outer tire temperature
  3. Middle tire temperature
  4. Inner tire temperature

Instrument Connection with the App

Thanks to the Prisma Electronics APP, you can download and view session data, export it to Excel or PDF, share it on the cloud with team members, and configure the instruments quickly and intuitively.
